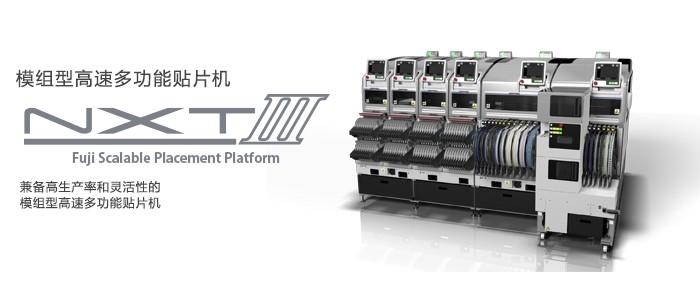

NXT-M6iii Electronic Chip Mounter Machine , Multi Function NXT Pick And Place Machine

Object circuit board size (LxW) :

48 mm x 48 mm ~ 534 mm x 290 mm (double handling track specifications)

48 mm x 48 mm ~ 534 mm x 380 mm (single handling track specifications)

* double handling track maximum 170 mm (W), into a single crane rail handling more than 170 mm.

Components with count: MAX45 species (8 mm strip conversion)

Circuit board loading time:

Double handling orbit: O SEC when continuous operation, single handle orbit: 3.4 SEC (M6 IIIc handling) between each module,

Module width: 645 mm

Machine size: L: 1295 mm x 2 (M3 x 4, III M6 III) / 645 mm (M3 x 2, III M6 III) W: 1900.2 mmH: 1476 mm

SMT/coating position precision accuracy (benchmark anchor point benchmark) : * SMT precision is in the company under the condition of determination results.

H24G: + / - 0.025 mm (standard mode) / + / - 0.038 mm (production priority mode) (3 sigma) CPK ≧ 1.00

V12 / H12HS: + / - 0.038 mm (3 sigma) CPK ≧ 1.00

H08M H04S/H04SF: + / - 0.040 mm (3 sigma) CPK ≧ 1.00

H08 / H04 / OF: + / - 0.050 mm (3 sigma) CPK ≧ 1.00

Capacity: * capacity values are in the company under the condition of determination results.

H24G: 37500 (production priority mode) / 35000 (standard mode) CPH

V12:26000 CPH

H12HS: 24500 CPH

H08M: 13000 CPH

H08:11500 CPH

H04:6500 CPH

H04S: 9500 CPH

H04SF: 10500 CPH

H02:5500 CPH

H02F: 6700 CPH

H01-2:4200 CPH

G04:7500 CPH

G04F: 7500 CPH

OF: 3000 CPH

GL: 16363 DPH (0.22 SEC/dot)

As seaborne components:

H24G: 0201-5 mm x 5 mm height: 2.0 mm

V12 / H12HS: 0402 ~ 7.5 mm x 7.5 mm height: 3.0 mm

H08M: 0603-45 mm x 45 mm height: 13.0 mm

H08:0402 ~ 12 mm x 12 mm height: 6.5 mm

H04:1608 ~ 38 mm x 38 mm height: 9.5 mm

H04S/H04SF: 1608 ~ 38 mm x 38 mm height: 6.5 mm

H02 / H02F/h01-2/0 f: 1608 ~ 74 mm x 74 mm (32 mm x 180 mm) height: 25.4 mm

G04 / G04F: 0402 ~ 15 mm by 15 mm height: 6.5 mm

Intelligent feeder: corresponding 4 8 12 16 24 ･ ･ ･ ･ ･ 32 44 56 72 88 ･ ･ ･ ･ ･ width of 104 mm strip

Tubes of feeder: 4 ≦ element ≦ 15 mm wide (≦ 6 tube ≦ 18 mm wide), 32 mm wide ≦ 15 ≦ element (18 ≦ feed tube ≦ 36 mm wide)

Tray unit: the corresponding materials plate size 135.9 x 322.6 mm (JEDEC specifications) unit (materials plate - M), 276 x 330 mm (tray unit - LT), 143 x 330 mm (tray unit - LTC)

Options:

Disc feeder, PCU IIc (feed bracket to replace units), PSU IIc stand bracket placement machine (material), MCU IIc replacement unit (module), MCU IIc (module) implantation, management computer implantation, FUJI CAMX Adapter, Fujitrax
