| Place of Origin: | China |
|---|---|
| Brand Name: | FUJI |
| Certification: | CE |
| Model Number: | XP14E2 XP143 |
| Minimum Order Quantity: | 1 ea |
| Price: | negotiable |
| Packaging Details: | Wooden box |
| Delivery Time: | 5-8 days |
| Payment Terms: | D/P, Western Union, T/T |
| PART NAME: | Fuji Placement Machine XP14E2 XP143 | USAGE FOR: | ASM FUJI |
|---|---|---|---|
| CONDITION: | New And Used | Product: | FUJI Mounter And Accessories |
| Price: | Negotiation | The Machine Size: | L1500mm，W1500mm，H1537mm |
| Machine Weight: | 2T | SHIPPING TERMS: | DHL, FEDEX, UPS, TNT |
| BRAND: | FUJI | DELIVERY TIME: | 5-8 Days |
| High Light: | Small Fuji SMT Machine,XP143E Fuji SMT Machine,Low Resistance Small SMT Machine |
||

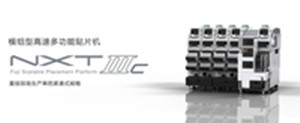

NXT - M3IIIc module high-speed Fuji SMT machine multi-function SMT machine Fuji placement machine:
My company's long-term cash supply FUJI FUJI XP14E2, XP143E small high-speed placement machine (sauce) XP241E, XP242E, XP243E, XPF -l, QP341 multi-function universal machine sales and leasing, long-term low-cost wholesale XP, electric original second-hand feida QP series specification
SMT Advantage:
Surface mount technology, SMT and its associated surface mount devices, SMDs considerably speed up PCB assembly as the components simply mount on the board.
Look inside any piece of commercially made electronic equipment these days and it is filled with minute devices. Rather than using traditional components with wire leads like those that may be used for home construction and kits, these components are mounted onto the surface of the boards and many are minute in size.
1. Good mechanical performance under shock and vibration conditions. (Partly due to lower mass, and partly due to less cantilevering.)
2. Lower resistance and inductance at the connection; consequently, fewer unwanted RF signal effects and better and more predictable high-frequency performance.
3. Better EMC performance (lower radiated emissions) due to the smaller radiation loop area (because of the smaller package) and the lesser lead inductance.
4. Fewer holes need to be drilled. (Drilling PCBs is time-consuming and expensive.)
5. Reasonable initial cost and time of setting up for mass production, using automated equipments.
| XP-243E: |
1. Mounting range: 0603-45x150mm, parts below 25.4mm in height |
| 2. Mounting speed: 0.43s/chipIC, 0.56s/QFP IC |
| 3. Mounting accuracy: ±0.04mm/chipIC, 0.03s/QFP IC |
| 4. Applicable substrate: maximum 457x356mm, minimum 50x50mm, thickness 0.3-4mm |
| 5. Material rack support: front and rear feeding, 40 stations on the front side, and twooptions on the rear side: 10 kinds of 10 layers and 20 kinds of 10 layers |
| 6. Machine size: L1500mm, W1500mm, H1537mm (excluding signal tower) |
| 7. Machine weight: 2t |
| 8. Language support: Chinese, English, Japanese |
|
9. Program editing: support online programming and offline programming at the same time |
| XP-142E: |
| PCB size: X 80 mm /Y50 mm ---X508mm/Y457mm |
| Range of pastable components: 0201-5*4mm |
| Number of material stations: 100 |
| Theoretical patch speed: 0.168sec/piece at 21428 points per hour |
| Mounting accuracy: ±0.066mm |
| Size and weight: W1500*D1300*H1408, weight 1800Kg |
| Power and air source: 3-phase, 200V, 4KVA, air source: 80NL/min, 0.5MPa |
| Material rack support: front and rear feeding, 100 stations, trolley refueling method. |
| Language support: Chinese, English, Japanese |
| Program editing: supports online programming and offline programming at the same time. |
Supply all original new and used SIEMENS nozzle at good price:Shenzhen Xinyinglong Electronic Technology Co., Ltd focuses on providing electronic manufacturers with the following SMT equipment:
MPM printing machine, Koh Young SPI, Easa reflow soldering, HELLER reflow
Siemens placement machine, FUJI Fuji placement machine, Panasonic placement machine, Universal Placement machine, Yamaha placement machine, Philips/KNS placement machine Meilu
AOI, Vitronics Soltec reflow soldering, non-standard automation equipment, placement machine rental leasing
and other entire SMT production line equipment, as well as SMT parts, SMT supporting materials, Services and solutions.
Sell & Buy Smt machine and spare parts.
