| Place of Origin: | China |
|---|---|
| Brand Name: | Xin Yinglong |
| Certification: | CE |
| Model Number: | XYL-AS 108 |
| Minimum Order Quantity: | 1 ea |
| Price: | negotiable |
| Packaging Details: | Wooden box |
| Delivery Time: | 5-8 days |
| Payment Terms: | D/P, Western Union, T/T |
| Price: | Negotiation | SHIPPING TERMS: | DHL, FEDEX, UPS, TNT |
|---|---|---|---|
| The Equipment Size: | Can Be Customized | CONDITION: | Original New |
| The Name Of The: | SMT Automatic Picking Machine | DELIVERY TIME: | 5-8 Days |
| PACKING: | The Wooden Case | BRAND: | Xinyinglong |
| High Light: | SMT Peripheral Equipment Picking Machine,AS-108 SMT Peripheral Equipment,Automatic SMT Placement Equipment |
||

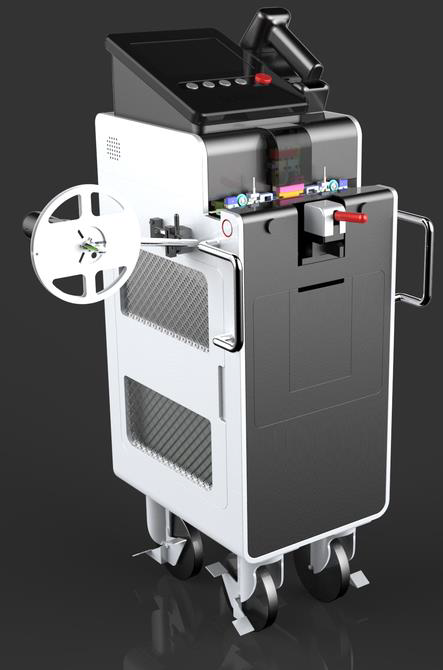

SMT automatic picking machine the AS - 108 automatic mistake proofing material recognition precision and efficiency:
SMT feeder machine, strip for SMT automatic production line, the demand of non-stop refueling quickly developed, for the same specifications of the two volumes of strip head and tail to realize automatic detection of the empty position, precise cutting, automatic docking, then tape wrapped connections. This equipment with electric, the overall light, transferring of high precision, 90 to more than 95% pass rate, feeder automatically after receiving, the interface of gm.
The new smart splicing equipment is capable of linearity! Consistency! The splicing is increased to more than 90~95%. In addition to the automatic splicing function, this equipment also has empty material recognition, self-cutting blank material, error-proof material recognition, and MES Connecting and other functions of the material receiving equipment. In fact, the machine yield rate of the line equipment is more than 95% for paper tape and more than 90% for tape.
1. The pre-cutting mechanism cuts off the excess empty material, saving the time of detecting the empty material, avoiding the repeated holding and placing of the scissors manually, and saving man-hours.
2. The equipment is easy to operate, and the time to get started is short (new employee training can be proficient in 15 minutes), which reduces the cost of training for employees. At present, the mobility of employees is large, and the technical dependence on employees is reduced to a minimum.
3. The equipment has high precision of material splicing, and the material spacing of the joints can be guaranteed to be 4MM or 2MM. The suction nozzle of the placement machine is sucked at the center of the component when sucking the component, which can improve the quality of the placement and reduce the throwing rate, and reduce the empty replenishment of the placement machine. frequency.
4. The equipment receiving time is 1~2 times faster than the manual (skilled) receiving speed, which can effectively reduce the working hours and reduce the labor intensity of the employees.
5. The quality of equipment splicing is improved, which can effectively reduce the short downtime of the patch caused by the quality of the splicing material, and increase the grafting rate of the equipment by more than 5%
Can solve the following problems for customers
Save management costs:
The pre-cutting mechanism cuts off the excess empty material, saves the time of detecting the empty material, avoids manual picking and placing of scissors, and saves man-hours. With the function of MES onboard comparison data, it can greatly reduce the comparison time and reduce errors.
Reduce labor costs:
The equipment is easy to operate, and the time to get started is short (new employees can be trained in 15 minutes to be skilled in operation), which reduces the cost of training for employees. At present, the mobility of employees is large, and the technical dependence on employees is reduced to a minimum; equipment receiving time is longer than manual (experienced) The speed of receiving materials should be more than 1~2 times faster, which can effectively reduce working hours and reduce the labor intensity of employees.
Improve equipment racking rate:
The quality of the equipment splicing is improved, which can effectively reduce the short downtime of the patch caused by the quality of the splicing, increase the grafting rate of the equipment by more than 5%, and the accuracy of the equipment is high. The suction nozzle of the chip machine is sucked at the center of the component when the component is sucked, which can improve the quality of the chip and reduce the throwing rate, and reduce the number of empty refills of the chip.
| Device parameters: |
| Applicable material tape range: Material tape width 8mm, thickness 0.25～1.2mm |
| Machine cycle (C/T): 8S (time adjustable) |
| Battery capacity: 60AH (optional) |
| Power supply time: 12 hours or more |
| Reading range: one-dimensional code Or QR code (optional) |
| Operating system: Win7 |
| Communication expansion: Can be seamlessly connected with the production system MES or SFCS |
| Working height: about 900mm |
| Power source: Built-in lithium battery (standard equipment 2PCS) |
| Empty material detection range: British system 0201 or more Components can automatically detect empty materials |
Shenzhen letter surplus lung electronic technology co., LTD., dedicated to electronic manufacturers to provide SMT equipment as follows:
MPM printer, Koh Young SPI, Easa reflow soldering
Siemens placement machine, FUJI FUJI SMT machine, panasonic SMT machine
The AOI, lu Vitronics Soltec reflow soldering, non-standard automation equipment, SMT machine rental lease
The SMT production line equipment, and SMT components, SMT supplementary materials, services and solutions.
