| Place of Origin: | China |
|---|---|
| Brand Name: | Xin Yinglong |
| Certification: | CE |
| Model Number: | RX-6R RX-6B |
| Minimum Order Quantity: | 1eat |
| Price: | negotiable |
| Packaging Details: | Wooden box |
| Delivery Time: | 5-8 Days |
| Payment Terms: | D/P, T/T, Western Union |
| Supply Ability: | 100 set/month |
| BRAND: | Juki | DELIVERY TIME: | 5-8 Days |
|---|---|---|---|
| SHIPPING TERMS: | Air Or Sea | Component Mounting Speed Chip Component:: | 52000cph (optimal Condition) * 2I Component: 14000cph (IC) * 3 |
| USED: | Good Condition | Component Size:: | 0402 (1005) Chip ~ 50mm Square Component * 40402 (British 01005) Chip ~ 50mm Square Component / 50 × 180mm*5 |
| Substrate Size:: | Single Track Transmission: 50 × 50~610 × 590/905 × 590mm (2 Transfers) Double Track Transfer: 50 × 50~360 × Specification Of 250m / 360x450mm (single Track Transmission | Patch Head: | 6 × Patch Head 3 With 6 Suction Nozzles × Patch Head With 3 Suction Nozzles * 6 |
| High Light: | Scalable JUKI SMT Machine,3mm JUKI SMT Machine,RX-6B Surface Mount Technology Machine |
||

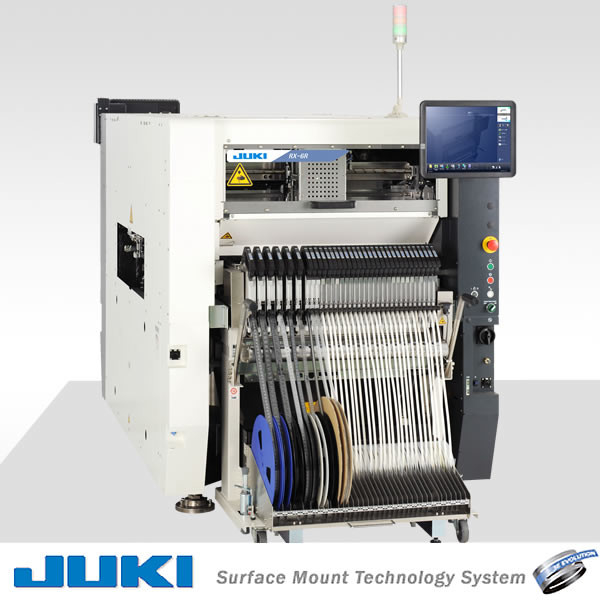

JUKI SMT machine RX - 6 r_rx - b is put into the new models in the RX - 6 series mount speed by 24%:
JUKI SMT machine RX - 6 r_rx - 6 b
Components SMT speed chip components: 52000 CPH (best conditions) * 2 IC components: 14000 CPH (IC) * 3
Element size: 0402 (1005) chip ~ 50 mm * 4 0402 square element (01005) inch chip ~ 50 square element / 50 * 180 ㎜ * 5 mm
Substrate size: monorail transmission: 50 x 50 ~ 610 x 590 mm x 590/905 transmission (2 times) dual-track transmission: 50 * 50 ~ 360 * 250 mm / 360 x450mm (monorail) transmission
Patch the nose specifications: 6 x6 suction nozzle, 3 x 3 suction nozzle, * 6
Compatible with dual-track * 6
The design of the space savings, width is 1.25 m
Standard pick-up/placement monitor check function to achieve higher quality * 1
, by changing the head can be built to adapt to changes in production of varieties of the best production line
Through the continuous image recognition to realize high speed SMT
Corresponding components, large components, large substrates
New matrix tray server TR8S raised components corresponding capacity and productivity.
comments
* 1 applies only to RX - 6 b with 6 suction nozzle placement head
* 2 RX - 6 r
* 3 options
* 4 RX - 6 r/RX - B 6 x6. Suction nozzle head
5 RX - B * 6 * 3. Suction nozzle head
* 6 applies only to RX - 6 b
RX - 6 r is RX - series of new models. Move up and down because of the suction nozzle axis of improvement, the increase of the intensity, optimization of mount head height, make mount speed compared with the machine before had the very big promotion. The ground increased by 24%, to 52000 CPH (best conditions).
Minimal RX - 6 series not only can be used in SMT components, large components, high back element, can also be used to mount a large substrate. It has the very high versatility and save space. It is only 1.25 meters. The width of the product section will help you to production.
RX - 6 series contains high speed model RX - r, the structure of the production line are more flexible flexible. Can correspond to many kinds of production, variable production, and also can correspond to the mass production, can correspond to the diversified production. Requirements.
Features:
Speed 52000 largest pasted on CPH
Improved suction nozzle axis, increase strength, highly optimized head, etc. It's only 1.25 meters width size, but mount faster than before soared 24%, to 52000 CPH (best conditions).
Rich component compatibility and substrate.
With the unique laser, JUKI can handle from 0.4 mm x 0.2 mm to 50 mm square element and height of 20 mm components.
Substrate size can correspond to 50 mm x 50 mm to 610 mm x 590 mm of various substrates.
It can be placed in two separate transmission and processing under the condition of large size is 910 mm * 590 mm base plate.
| monorail transmission: | 50 × 50~610 × five hundred and ninety thousand and five × 590mm (2 transfers) |
| Element height: | 6 / 12 / 20mm |
| Component mounting type: | up to 160 |
| Component mounting accuracy: | image recognition * 2 ± 0.04mm |
| Component mounting accuracy: | laser identification ± 0.04mm (CPK ≥ 1) * 5 |
| Component mounting speed: | the best condition for mounting components * 3 42000CPH IC*4:14000CPH |
