| Place of Origin: | China |
|---|---|
| Brand Name: | Xin Yinglong |
| Certification: | CE |
| Model Number: | YS24X |
| Minimum Order Quantity: | 1 eat |
| Price: | negotiable |
| Packaging Details: | Carton Box |
| Delivery Time: | 1-3 days |
| Payment Terms: | T/T, D/P, Western Union |
| Object Substrate: | L50*W50mm | Mounting Capacity: | 54000cph (0.067s Chip) |
|---|---|---|---|
| Mounting Accuracy: | Absolute Accuracy (+ 30.05mmchip, ± 0.05mmqfp) (when The Company Uses Standard Components For Evaluation) Repetition Accuracy (30): ± 0.03mm/chip, ± 0.03mm/qfp | Component Type: | Winding Tape: 108 Kinds (maximum Converted To 8mm Winding Tape) Pallets 30 Kinds (maximum Converted To JEDEC Pallets) |
| Price: | Negotiation | SHIPPING TERMS: | DHL,FEDEX,UPS,TNT |
| DELIVERY TIME: | 5-8 Days | Usage: | A Brand New |
| High Light: | 54000cph Yamaha SMT Machine,Automatic Yamaha SMT Machine,YS24X Yamaha Pick And Place Machine |
||
YAMAHA the best SMT placement machine - YS24X products ability satz Ⅱ automatically switched tray:
YAMAHA SMT machine - YS24X products overview:
54000 CPH (0.067 SEC/CHIP) general placement machine best SMT capacity
Satz Ⅱ automatically switched tray corresponding supply device
L700 x W460mm corresponding to very large substrates
Corresponding to the yamaha double track system
0402-45 * 100 mm the corresponding components
H15mm corresponding height
YAMAHA SMT machine - YS24X product advantage:
Small general modular YS24X SMT machine at a high speed
General placement machine's top post in the installed capacity of 54000 CPH (0.067 seconds/CHIP)
Maximum number of feeder installation strip plate (8 mm) 96 (with sATSII for 62)
Support automatic replacement pallet supply device (30) JEDEC tray sATSII
To support element, altitude 0402 ~ 45 * 100 mm, H15mm

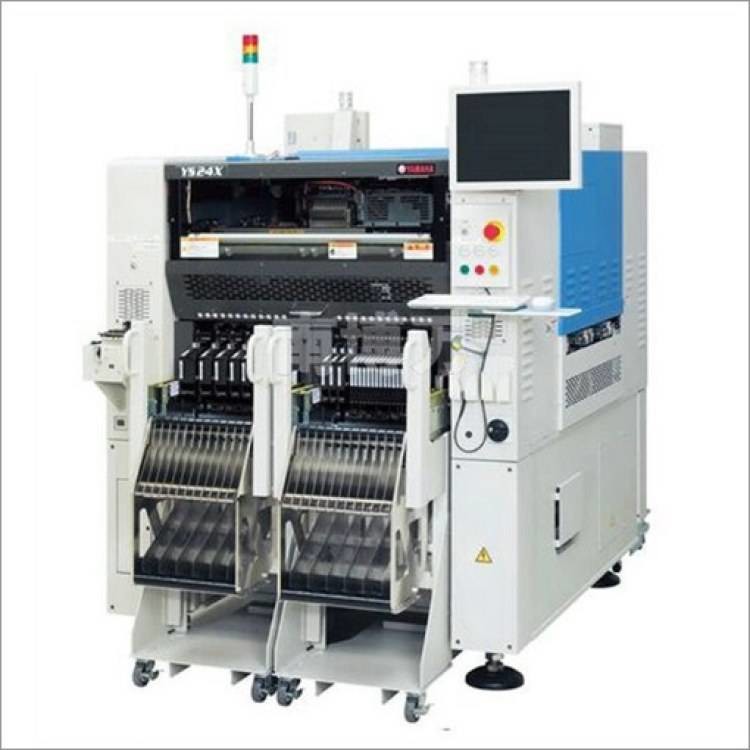

YAMAHA YS24X placement machine
54000 CPH (0.067 SEC/CHIP) general placement machine best SMT capacity
Satz Ⅱ automatically switched tray corresponding supply device
L700 x W460mm corresponding to very large substrates
Corresponding to the yamaha double track system
0402-45 * 100 mm the corresponding components
H15mm corresponding height
model:
Ys24 model kkt-000
Object substrate
Mounting capacity
54.000cph (0.067s chip)
(optimum conditions)
Mounting accuracy
Absolute accuracy (+ 3) 0.05mm/chip, 0.05mmfp
The company uses standard components for evaluation)
Repeatability (30.03mm/chip, 003mm / QFP)
Component type
108 kinds of reels (maximum converted to 8mm reels) and 30 kinds of pallets (maximum converted to JEDEC: pallets)
Object component
0402~45 × 100mm, height less than 15mm, corresponding to ball electrode element ※ 32mm or more, special suction assembly shall be installed
Power specifications
Three phase ac200208 / 220240380 / 400416v10%
Gas supply source
Above 0.45MPa, ancient dry state
Overall dimension
L1254xW1. six hundred and eighty-seven × H1,5mm (main body)
Except protrusions
L1254W2020 × H1545mm when assembling sats
Main body Chongli
About 1700kg main body
About 1890g: during assembly
| Object substrate: | L50 × W50mm~L700W460mm |
| Mounting capacity: | 54000cph (0.067s chip) |
| Power specifications: | Three phase AC200 / 20820240380 / 400416v ± 10% |
| Gas supply source: | Above 0.45MPa, clean and dry |
| Overall dimension: |
L1254xW1,687 × H1445mm (main body) L1254w2020h1545mm when assembling satsii |
| Main body Chongli: | About 1700kg: main body About 1890kg: when assembling satsii |
